Level Sensor for High Level or Low Level from Almeg Controls

Level Sensor for High Level or Low Level more detail here

Level Sensor,High Level,Low Level,Almeg Controls

Small Size Level Sensor

Probe Material	SS Float	Buna Float	PP Float	Kynar Float
Stainless Steel	SVS12	SVB12	SVP12	SVK12
Brass	BVS12	BVB12	BVP12	BVK12
Polypropylene	PVS12	PVB12	PVP12	PVK12
Kynar ( PVDF)				KVK12

Level Sensor,High Level,Low Level,Almeg Controls

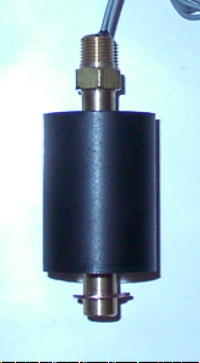

Medium Size Level Sensor

Probe Material	SS Float	Buna Float	PP Float	Kynar Float
Stainless Steel	SVS12	SVB12	SVP12	SVK12
Brass	BVS12	BVB12	BVP12	BVK12

Level Sensor,High Level,Low Level,Almeg Controls

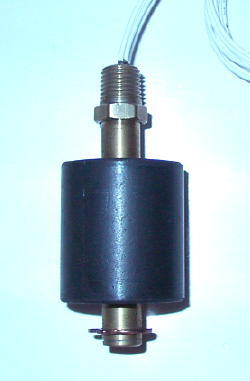

Large Size Level Sensor

Probe Material	SS Float	Buna Float	PP Float	Kynar Float	Titanium Float
Stainless Steel	SXS25	SXB25	SXP25	SXK25
Brass	BXS25	BXB25	BXP25	BXK25
Polypropylene	PXS25	PXB25	PXB25	PXK25	(pvc float) PKP25
Kynar ( PVDF)				KXK25
Titanium					TXT25

Level Sensor,High Level,Low Level,Almeg Controls

Side Mount Level Sensor

Connection	Polypropylene	Kynar	Nylon	Stainless
½” NPT	SX500		SX502	SX600
Bulkhead	SX300		SX302
½” NPT X ½” NPT	SX200	SX201		SX601
Temperature	- 10 to 80 C	100 C	- 10 to 110 C	- 40 TO 148 C
Pressure	100 psi	100 psi	100 psi	200 psi
Specific Gravity	0.55	0.65	0.65	0.80

Level Sensor,High Level,Low Level,Almeg Controls

Bent Stem Level Sensor
Part Number SX 100

Good looks and a smart design make this rugged model ideal for OEM or one-shot applications. The activation can be selected on location by simply reversing the float. Installs in the side of a vessel with simplicity being the key. Simply drill a 25/64” or 10mm hole or 1/8” NPS thread and install. Buna, SS or PP floats available

Level Sensor,High Level,Low Level,Almeg Controls

90 Degree Level Sensor
Part Number SX 80

The little stubby can be rotated 180 degrees to change state allowing for NO or N/C positions.

Great cost effective dependable product.

Vertical float action

Floats Operating Range

	PSI	Temperature	Sp. Gr.	Weight
316 Stainless Steel	500 psi	- 40 to 300 F	Std. is – 0.72	7.6 g
Closed Cell Buna	200 psi	- 40 to 225 F oil	0.47	5.42 g
PVC	100 psi	100 F	0.7	6.5 g
Kynar ( PVDF)	100 psi	100 F	0.7	6.5 g
Polypropylene	100 psi	100 F	6.5	6.5 g
Titanium	300 psi	300 F	0.55	light
