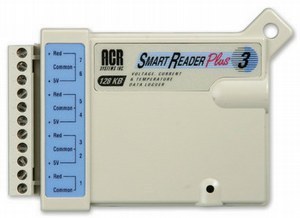

ACR SmartReader Plus 3 8-Channel AC Current, Voltage & Temperature Data Logger

SmartReader,Plus 3,8-Channel,AC Current,Voltage,Temperature,Data,Logger,ACR,SystemsThe ACR SmartReader Plus 3 8-Channel AC Current, Voltage & Temperature Data Logger easily and accurately records AC Current and Voltage (requires separate transducer). Simply connect the logger to ACR's current probes which are then clamped around the conductors, wire the  voltage transducer option and begin recording. From this data, total energy consumption (kWh) can be determined for a given period using TrendReader® 2 software.

Applications

  • Energy Usage Profile - Real Power (kW)
  • Power Consumption Monitor - Energy Delivered (kWh)
  • Electrical Load Study - Apparent Power (kVA)
  • 2 or 3 Phase Balancing - Amperage (A)

Specifications

Current Ranges
5, 25, 100, and 250 Amps (with A60FL [60 Hz] and A65FL [50 Hz] current probes)
10, 50, 250, and 500 Amps (with A70FL [60 Hz] and A75FL [50Hz] current probes)
Nominal Voltage Ranges
120 V (1 phase, 60 HZ)
480 V (3 phase, 60 HZ)
Accuracy
Voltage Channels: +/- 0.5% F.S.
Current Channels: +/- 3.5% F.S. above the lowest 10% of range

Ordering Information

Model Memory Catalogue #
SRP-003 32 KB 01-0010
SRP-003-128K 128 KB 01-0114
SRP-003-1.5M 1.5 MB 01-0143
