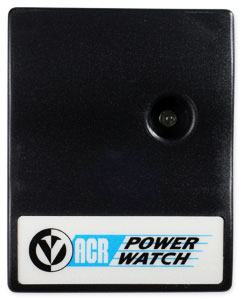

ACR Voltage Disturbance Recorder - PowerWatch 220/240V

Voltage,Disturbance,Recorder,PowerWatch,220/240V,ACR,SystemsPowerWatch 220/240V is the easiest way to monitor and record essential voltage disturbance information from any 220 to 240 Volt Australian, European or UK power receptacle. Just set up your pre-determined disturbance threshold values or use the industry standard default values and plug it in. No wiring or dangerous connections required.







Specifications

  Hot to Neutral Neutral to Ground
Surge, Sag & Outage
Range
0 to 270 V rms 3 to 150 V rms
Accuracy
+/- 2 V rms + resolution +/- 1 V rms + resolution
Resolution
2 V rms 1 V rms
Impulse
Range
100 to 2500 V peak 50 to 2500 V peak
Accuracy
+/- 10% of reading +/- 10% of reading
Resolution
10 V 10 V
Width Detection
1 µsec minimum 1 µsec minimum
Phase Angle Accuracy
+/- 1° (20 to 180°, 200 to 360°) +/- 1° (20 to 180°, 200 to 360°)
Phase Angle Resolution
Frequency
Range
45 to 65 Hz
Accuracy
+/- 0.1 Hz (3 cycles minimum)
Resolution
0.1 Hz
Time Events (< 1 sec)
Accuracy
+/- 0.5 cycle +/- 1 cycle
Resolution
0.5 cycle 1 cycle
Time Stamp (> 1 sec)
Accuracy
+/- 2 seconds/day + resolution
Resolution
8 seconds

Ordering Information

Model Compatibility Catalogue #
PWV-002-A Australia 01-0205
PWV-002-U United Kingdom 01-0200
PWV-002-E Europe 01-0215
