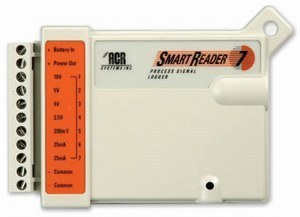

ACR SmartReader 7 8-Channel Process Signal Data Logger from ACR Systems

SmartReader 7,8-Channel,Process,Signal,Data,Logger,ACR,SystemsThe ACR SmartReader 7 8-channel process signal data logger is a versatile data logger that can monitor and record a variety of different process signals including the popular 4-20mA and 0-5V. With its seven input channels, the logger is ideal for monitoring (through commercially available transducers) a wide variety of measurement parameters.



Specifications

Input Ranges
(Standard Model)
0 to 2.5 volts DC (1 channel)
0 to 5.0 volts DC (2 channels)
0 to 10.0 volts DC (1 channel)
0 to 200 millivolts DC (1 channel)
0 to 25 milliamps DC (2 channels)
Input Ranges
(Other Models)
0 to 2.5 volts DC (all external channels)
0 to 5 volts DC (all external channels)
0 to 10 volts DC (all external channels)
0 to 25mA DC (all external channels)
Accuracy
+/-1% full scale
Input Impedance
> 1 M ohm (200 mV channels)
> 1 M ohm (0 to 2.5 V channels)
20 K ohm (0 to 5.0 V channels)
40.9 K ohm (0 to 10.0 V channels)
100 ohm (0 to 25 mA channels)
Transducer Restrictions
It is recommended to use a single power supply or loop isolators to avoid ground loops.
Overload Protection:
Voltage channels: +/- 40 volts (reverse-polarity protected)
Current channels: +/- 70 mA (reverse-polarity protected)

Ordering Information

Model Memory Catalogue #
SR-007 32KB 01-0031
SR-007-0-2.5V 32 KB 01-0033
SR-007-0-5V 32 KB 01-0034
SR-007-0-10V 32 KB 01-0041
SR-007-25mA 32 KB 01-0032
