Partlow 2000 1/4 DIN PID Controller

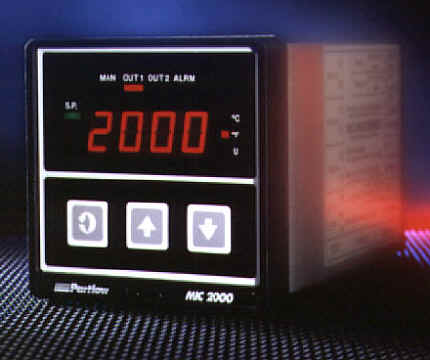

Partlow MIC 2000

1/4 DIN, microcontroller based, PID controller with single red display and simple 3 button operation.

Standard Features

• Universal Isolated sensor input: thermocouple, mA, mV, or V
• Setpoint & output limits
• Relay or SSRD first output (mA optional)

Optional Features

• RTD input
• Additional relay, SSRD, or mA outputs
• Position proportioning for use with slidewire feedback
• Remote setpoint
• Setpoint ramping
• Process or setpoint value retransmission
• Setpoint tracking
• 3 Scans per second
• RS-485 Communications
• 24V Transmitter power supply
• Remote keypad switch capability
• NEMA 4 LifeGuard accessory

Key Specifications

• +/- 0.25% of reading accuracy
• 1 Scan per second
• 5A SPST Relay outputs
• 5.8" Panel depth
• 115 or 230 (optional) VAC powered
• 3 Year warranty

Agency Approvals

• UL Recognized
• CSA Certified
