Micro-Flo - Flow Verification Sensor (FVS)

Designed to monitor metering pump output.

  • Detect a clogged injector.

  • Detect an empty chemical supply tank.

  • Detect a lost prime condition.

  • No special connectors to buy.

  • No calibration required.

  • Maximum pressure rating 150 PSI

Micro-Flo,Flow,Verification,Sensor,Blue,White,Industries

Micro-Flo,Flow,Verification,Sensor,Blue,White,Industries

Micro-Flo,Flow,Verification,Sensor,Blue,White,Industries

Micro-Flo FVS

FVS Installations

Micro-Flo,Flow,Verification,Sensor,Blue,White,Industries
Peristaltic Pump with FVS

  • Due to feed rate characteristics of a peristaltic pump, the sensor should be mounted on the suction (input) side of the pump head.

Note: A diaphragm pump requires the sensor to be mounted on the discharge (output) side of the pump head.

Installing the FVS Flow Monitor

  • The Flow Verification Sensor (FVS) should be installed on the inlet (suction) side of the pump tube. The sensor includes a PVC tubing insert, located inside the sensor's female thread connection, that is designed to seal the sensor onto the pump tube inlet adapter.

  • Thread the sensor onto the pump tube until the tubing insert is snug against the pump tube inlet fitting. Do not over tighten.

  • Connect the RED, BLACK, and WHITE wires from the sensor to the RED, BLACK, and YELLOW wires located in the pump's junction box.

Micro-Flo,Flow,Verification,Sensor,Blue,White,Industries
Diaphragm Pump with FVS

  • High pressure C-1100V pump with the FVS installed on the pump head.

  • Due to feed rate characteristics of a diaphragm, the sensor should be mounted on the discharge (output) side of the pump head.

Note: A peristaltic pump requires the sensor to be mounted on the suction (input) side of the pump head.


Please note: The FVS is not required to mount directly to the pump head. You can install this sensor anywhere to detect low flow.

Wetted Materials (liquid ends):

  • PVDF / Kynar (Body, Paddle, Axle, Connection)

  • Viton (o-ring seals)

  • Clear PVC (Lens Cap)  -  optional PVDF / Kynar

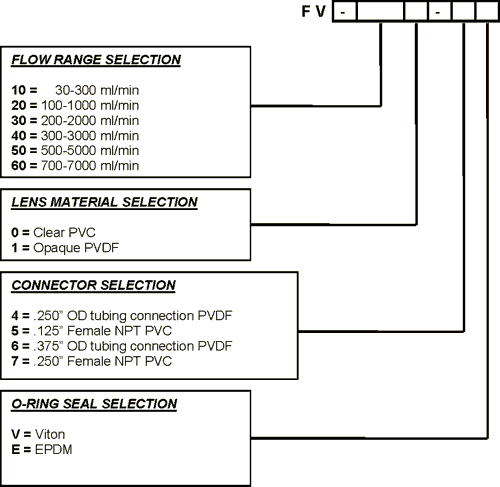

Ordering Matrix:

Micro-Flo,Flow,Verification,Sensor,Blue,White,Industries

Caution: Always wear protective clothing, face shield, safety glasses and gloves when working on or near your metering pump.
Additional precautions should be taken depending on the solution being pumped. Refer to MSDS precautions from your solution supplier.



Note: All diagrams are strictly for guideline purposes only. Always consult an expert before installing the metering pump on specialized systems. The metering pump should be serviced by qualified persons only.
