| Pocket Laser Tach 200 digital contact/non-contact tachometer |
|
 |

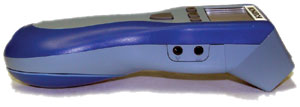

Pocket Laser Tach 200 (PLT200)
PLT200 is a digital, battery-powered portable optical tachometer, which operates up to 25 feet* from a reflective target using a laser light source. The ergonomic design allows safe, direct line-of-sight viewing of both the target and the display at the same time, while providing a non-slip rubber surface for single hand operation.
Multi-Function
PLT200 is a 32 function Tachometer/Ratemeter, Totalizer/Counter and Timer (stopwatch), which is programmable in both English and Metric linear rates. Support is built-in for both our optional Remote Contact Assembly (RCA) and our Remote Sensors. PLT200 has a TTL compatible Pulse Output to trigger devices like data collectors or stroboscopes.
The KIT is supplied complete with a Remote Contact Assembly including concave and convex tips and a 10 cm linear speed wheel and a 5 foot roll of reflective tape all in a latching carrying case.
* performance subject to intensity of ambient light irradiation.
|
  |
|
|
Features
to top
|
 All Pocket Tach Series instruments provide a unique ergonomic design which allows you
to safely observe both the display and the rotating target at the same time. |
- Operating Range up to 25 feet* (Class 3R visible laser)
- Accepts Remote Contact Assembly (optional)
- Accepts Remote Sensors (optional)
- TTL Pulse Output with 6 foot BNC Cable
- Auto Ranging/Fixed Decimal (user selectable)
- English and Metric Rates
- Tripod Mounting Bushing
- On-Target and Low Battery Indicators
- Rugged Rubberized Housing
- N.I.S.T. traceable Certificate of Calibration included
|
| Exclusive Features no other tachometer provides this versatility |
|
|
 Remote Contact Assembly
Unique handle grip allows user to safely make contact measurements while reading the display in a safe position. Works with all Monarch Pocket Tachometers capable of linear rates. |
 Every PLT200 and PT99 comes with a 1/4" -20 UNC bushing for tripod mounting. Lock the power "on" for true "hands-free" operation |
| PLT200 Specifications
to top |
| Display: |
5 Digits, 5 Alpha-numeric LCD |
| Range(s): |
Optical: 5 to 200,000 RPM |
| |
Contact RPM: 0.5 to 20,000 RPM (see rates) |
| Accuracy: |
Optical:±0.01% of reading |
| |
Contact:±0.05% of reading (rpm) |
| Totalizer: |
1-200,000 |
| Resolution: |
0.001 to 10 RPM (range dependent) |
| Operating Range: |
2 inches to 25 feet*, ±70° |
| Memory: |
Maximum, Minimum and Last reading |
| Power: |
(2) "AA" 1.5 VDC batteries (30 hours) |
| Environmental: |
Temp: 5° to 40°C (0° to 100°F) RH:80% RH up to 31°C (88°F) |
| Dimensions: |
6.92 "H x 2.4"W x 1.6"D |
| Weight: |
7 oz. (210 g)
to top |
|
RATES:
|
10cm Contact Wheel
|
12 inch circumference Contact Wheel
|
|
Inch/min
|
1.969 to 78,740 IPM
|
6.000 to 144,000 IPM
|
|
Feet/min
|
0.164 to 6,561.7 FT/M
|
0.500 to 12,000 FT/M
|
|
Yard/min
|
0.055 to 2,187.2 YPM
|
0.167 to 4,000.0 YPM
|
|
Cm/min
|
5.000 to 200,000 cm/M
|
15.240 to 365,760 cm/M
|
|
M/min
|
0.050 to 2,000.0 M/M
|
0.153 to 3,657.6 M/M
|
| also reads engineering units in
per second and per hour |
| Pocket Tach 99 basic non-contact optical tachometer |
| Features |
Specifications |
|
 Pocket Tach 99 is a digital, battery-powered portable non-contact optical tachometer (red LED), which operates up to 36 inches from a reflective tape target using an LED light source. The ergonomic
design allows safe, direct line-of-sight viewing of both the rotating target and the display at the same time, while providing a no-slip rubber surface for single hand operation. Pocket Tach 99 in the value-leader of the world-class Pocket Tach Series from Monarch.
|
Display: 5 Digits, 5 Alpha-numeric LCD
Range: 5 to99,999 RPM
Accuracy: ±0.01% or ±1 Digit
Resolution: Autoranging: 0.001 to 1.0 RPM
Fixed: 1 Digit RPM
Operating Range: 2 inches to 36 inches, ±30°
Memory: Maximum, Minimum and Last
Power: (2) "AA" 1.5 VDC batteries (20 hours)
Environmental: 5° to 40°C (0° to 100°F)
80% RH up to 31°C (88°F)
Dimensions: 6.92 "H x 2.4"W x 1.6"D
Weight: 7 oz. (210 g)
Standards: IEC1010-1 |
| PT99 Ordering Information |
| Item No. 6109-010 |
PT-99 Pocket Tach 99 basic non-contact optical tachometer with 12 inches of T-5 Reflective Tape |
| 6180-047 |
Padded Pouch with belt loop. |
| 6180-CAL |
N.I.S.T. traceable Certificate of Calibration must be ordered at the time of instrument purchase |
| PLT200 Ordering Information
|
| ITEM NUMBER |
MODEL |
DESCRIPTION |
|
6125-011  |
PLT200 KIT |
Pocket Laser Tachometer 200 Kit includes: Tach, RCA, Carrying Case, N.I.S.T. and 5 ft roll of T-5 reflective tape. |
|
6125-010
 |
PLT200 |
Pocket Laser Tachometer 200 includes: tachometer/timer/totalizer with N.I.S.T. traceable certificate of calibration, and 12" of Reflective Tape. |
|
| Accessories |
| 6180-057 |
ROS-P |
Remote Optical Sensor with 8 foot cable, mounting bracket and 12" of reflective tape. |
| 6180-057-25 |
ROS-P-25 |
Remote Optical Sensor with 25 foot cable, mounting bracket and 12" of reflective tape. |
| 6180-017 |
MT-190P |
Magnetic trigger Sensor/Amplifier with 8 foot cable |
| 6180-020 |
IRS-P |
Infrared Sensor with 8 foot cable, 3.5 mm plug and mounting bracket |
| 6180-028 |
EC-25P |
25 foot extension cable for all sensors |
| 6280-037 |
CA-4044-6 |
6 foot input/output cable, 1/8 inch mono phone plug to BNC connector |
| 6180-047 |
CC-10 |
Padded Pouch with belt loop fits PT99 and PTL200 tachometers |
| 6180-048 |
CC-11 |
Latching Plastic Carrying Case. Fits all Models. |
| 6180-074 |
RCA |
Remote Contact Assembly includes contact tips (concave and convex) and 10 cm linear contact wheel. |
| 6580-010 |
CTE |
Rubber concave, convex tips and 10 cm contact wheel |
| 6580-011 |
12" Contact Wheel |
Linear Contact Wheel with 12 inch circumference for use with RCA (6180-074). |
| 6180-070 |
T-5 |
Reflective Tape 5 foot roll, 0.5 in wide |
| 6180-CAL |
CAL-NIST |
N.I.S.T. traceable certificate of calibration/re-calibration |
Pocket Laser Tach (Tachometer) from Monarch Instrument
|
