PALM STROBE™ is the new industrial standard for high intensity, multi-function compact Portable Xenon Stroboscope. Unique one-touch joystick-type button allows single hand operation for fractional RPM tuning. Select mode of operation for internal tuning, external TTL input, tachometer
display and x2 ÷2 and memory recall functions.
|
|
|
|
| PALM STROBE™ first and only removable, re-chargeable battery pack portable Stroboscope |
Unique joy-stick tuning button for single hand operation |

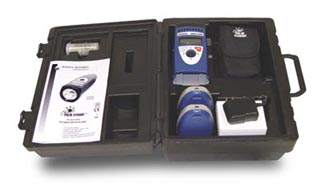

Available as a complete kit with Strobe, (2) spare batteries, re-charger (115 or 230 or Universal Vac), Spare Lamps, Holster and Carrying Case. |
PALM STROBE SPECIFICATIONS
(prices and specifications subject to change without notice). |
| Display |
6 digit alphanumeric backlit LCD |
| Light Power |
7 watts actual power equivalent to 10 watts of effective power |
| Flash Duration |
10 - 30 µseconds typical |
| Internal Mode
|
Flash Range: 100 - 12,500 FPM |
External Mode |
Range and Display: 0 - 14,000 FPM |
| Resolution: ± 0.1 FPM |
Update Rate: 1 second typical |
| Accuracy: ± 0.5 FPM or ± 0.01% of reading. |
FPM Accuracy: ± 0.2 FPM |
| Update Rate: Instantaneous |
Trigger to Flash Delay: < 5 µsec |
| . |
External Input: 0 - volt TTL compatible (+12V pk max) 20 µsec min pulse width. Positive edge triggered. |
| Tachometer Mode |
Range: 10 - 250,000 RPM |
| Accuracy: ± 0.01% or 0.1 RPM |
| Update Rate: 1 second typical |
|
External Input: 0 to 5 volt TTL compatible (+12V pk max) 20 µsec min pulse width. Positive edge triggered
|
| Run Time |
1 hour typical at 1800 FPM with fully charged batteries. |
| Adjustment |
Four Quadrant Pressure Sensitive Joystick Button adjusts flash rate, x2 and ÷2 |
| Output Pulse |
250 µsec positive pulse, 5 Vdc typical |
| Power |
Removable 6V Rechargeable Battery Pack with integral charge control electronics |
| Weight |
1.4 lbs (0.63 g) including battery |
|
|
|
| PALM STROBE™ Holster. Fits on your utility belt with a spare battery pouch. |
Optional Universal Recharger (100-230 Vac) comes with US, UK, AUS and EURO Adapter Plugs. |
 Download Brochure
PALM STROBE ORDERING INFORMATION
(prices and specifications subject to without notice). |
| ITEM # |
MODEL |
DESCRIPTION |
| 6205-010 |
PALM STROBE 115 |
STROBE, BATTERY, RE-CHARGER |
| 6205-011 |
PALM STROBE PAK 115 |
STROBE, BATTERY, RE-CHARGER, SPARE BATTERY, HOLSTER |
| 6250-012 |
PALM STROBE KIT 115 |
STROBE, BATTERY, RE-CHARGER, SPARE LAMPS, CASE |
| 6205-013 |
PALM STROBE DELUXE KIT 115 |
STROBE, BATTERY, RE-CHARGER, SPARE LAMPS, SPARE BATTERY, HOLSTER, CASE |
| 6205-020 |
PALM STROBE 230 |
STROBE, BATTERY, PR230 RE-CHARGER |
| 6205-021 |
PALM STROBE PAK |
STROBE, BATTERY, PR230 RE-CHARGER, SPARE BATTERY, HOLSTER |
| 6205-022 |
PALM STROBE KIT |
STROBE, BATTERY, PR230 RE-CHARGER, SPARE LAMPS, CASE |
| 6205-023 |
PALM STROBE DELUXE KIT |
STROBE, BATTERY, PR230 RE-CHARGER, SPARE LAMPS, SPARE BATTERY, HOLSTER, CASE |
| ACCESSORIES |
| 6280-025 |
PS BATTERY |
RE-CHARGEABLE LEAD-ACID BATTERY PACK |
| 6280-043 |
PS HOLSTER |
HOLSTER WITH BELT LOOP AND POUCH |
| 6280-015 |
PR115 |
RE-CHARGER, 115 VAC |
| 6280-016 |
PR UNIVERSAL |
RE-CHARGER, UNIVERSAL 100 to 230 VAC WITH USA, U.K., AUS, EURO ADAPTER PLUGS. |
|
6280-016
|
PR230 |
RE-CHARGER, 230 VAC with Euro Plug |
| 6280-029 |
L-1904 (twin pack) |
(2) REPLACEMENT XENON LAMPS |
| 6280-042 |
CC-8 |
LATCHING CARRYING CASE |
| 6280-037 |
PS PO CABLE |
PULSE OUTPUT CABLE, 6 FEET-1/8" MONO PLUG TO BNC CONNECTOR (CA-4044-6 1/8" to BNC) |
| 6280-032 |
PS INPUT CABLE |
PULSE INPUT CABLE, 6 FEET-1/8" STEREO PLUG TO BNC CONNECTOR |
