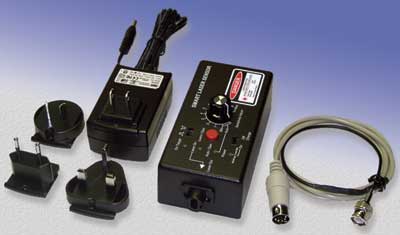

Smart Laser Sensor is an internal battery-powered optical sensor utilizing a visible Class 3R Laser for a TTL pulse output. Operating range up to 65 feet with reflective tape and up to 3 feet*
(1 m) off contrasting color targets, keyways, bolt heads or blades.
*performance subject to intensity of ambient light irradiation
Features
- Smart” auto gain provides best performance in picking up target reflection.
- On Target” Indicator
- TTL pulse output signal inverter Switch
- Manual sensitivity knob provides dynamic fine tuning of sensor response
- On/Off or Recharge Switch Power/Battery Condition Indicator
- Class 3R visible Laser and Nosepiece
- Signal/Pulse/RS232 Output DIN connector Port
- External DC power or recharger Port
- Tripod Mounting Bushing (¼ - 20 UNC)
Applications
- Potable balancing TTL trigger
- Automotive and aerospace performance testing
- Vibration data collection TTL trigger, synchronous time averaging
- Papermaking and converting felt speed, feed rates
- Sata acquisition TTL trigger
- Rotating machinery speed readings and TTL trigger
