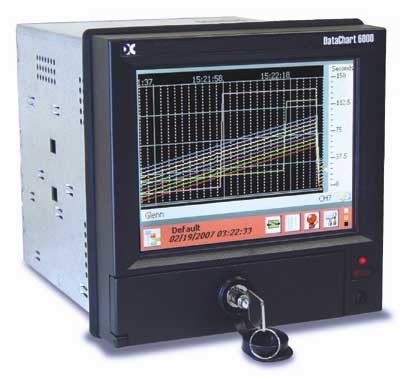

DataChart® 6000 Paperless Recording System

Paperless Recording System, DataChart 6000 The DataChart 6000 is the most advanced paperless recording system available. It incorporates the latest in measurement, communication, interface and processing technologies to deliver unmatched performance for your data acquisition application.

The DataChart 6000 is like no other paperless recorder available. We listened carefully to our product users and developed a device with the unique features they demanded.

Features

  • 6 or 12 universal inputs
  • Up to 4 pulse/frequency inputs
  • 6 or 12 relay outputs
  • Networkable using standard Ethernet Port
  • 21 CFR Part 11
  • 24 volt transmitter power supply
  • IP65/NEMA4 compliant
  • Locking media access door
  • Onboard Media Drives:
    1. CompactFlash™
    2. USB (Memory stick, external drive etc.)
    3. Smart Digital (SD)
  • Touch Screen Control
  • Direct on screen chart annotation with integral stylus
  • Infrared port
  • Built in OPC server
  • Built in E-mail client
  • Shallow installation depth (6.5")

Benefits

  • Maximum flexibility achieved with universal inputs
  • Input pulse signals directly from flow meters
  • Relay outputs for control or activating external alarms
  • Accessible via LAN or WEB
  • Reduce cost and complexity by providing transmitter power supply
  • No additional equipment needed to panel mount in harsh environments
  • Media and Data can be locked and secured
  • Flexibility of multiple media drives
  • Intuitive icon driven touch screen interface
  • Write notes and comments directly on the virtual chart for permanent storage with data
  • Remote control wirelessly
  • Seamlessly interfaces with third party software packages using OPC standard
  • Send alarm, instantaneous data or activity information anywhere with E-mail capability
  • Shallow depth allows the use of economical panels and enclosures for installation

Download DC6000 Brochure
