DataChart® DC-2000 Paperless Recorder Series

DataChart DC-2000, Data-Chart 2000, DataChart, DC-2000, Paperless Recorder, SeriesIf you demand:

  • Higher reliability
  • Increased flexibility
  • Optimum efficiency
  • Lower costs
  • DataChart 2000 Series Paperless Recorders are the instruments for you!

Overview
The Data-Chart 2000 has 2, 4, 6 or 12 direct universal isolated inputs that are menu selectable for DC voltage, DC current and thermocouples. The intuitive Touchscreen control provides easy, fast set up and operation.

Display

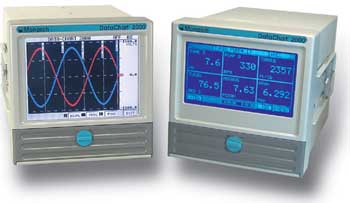

Our brilliant 5.6" (142mm) active matrix TFT color display is the largest in it’s class and with a special anti-glare coated Touchscreen the viewability is second to none. If you need a more economical solution, the DC2000 can also be ordered with a super bright blue monochromatic display.

Recording
Data is stored in non-volatile internal RAM and downloaded to removable media automatically on a preset basis or on demand. Standard removable storage is CompactFlash® up to 2 GB or if your are old fashioned order the 3.5" 1.44Mb disk drive.

Speed
A measurement rate of 8 samples per second for 1 channel makes the DC2000 ideal for recording process signals that change quickly such as pressure. Or, if you require information less frequently, you can select to record between 8 samples per second and ten minutes.

Communications
Communication options offer great flexibility in accessing data or controlling the DC2000. Data can be accessed and downloaded over standard phone line using the RS232C option and a modem. The RS485 MODBUS option will allow the DC2000 to be installed into an existing MODBUS network or you can connect up to thirty one recorders in series. The 10BaseT Ethernet port option allows direct connection to LAN’s or WAN’s and the standard TCP/IP protocol means that you can transfer data over the Internet

There are more than 20 display modes to choose from. This gives you unparalleled flexibility to view only the data you need to see in virtually any format. Grouping of channels maximizes efficiency.

Features:

  • 2, 4, 6 or 12 direct universal inputs: DC voltage, current and thermocouples
  • High speed storage capability: up to 8 samples per second per channel.
  • Multiple storage media options: 3 1/2" 1.44MB disk,or Compact Flash up to 2 GB.
  • 5.6" Brilliant TFT active matrix color display or 5" monochrome display.
  • Intuitive Touchscreen Control with anti-glare coating.
  • Splash resistant front panel
  • Standard DIN enclosure: 144mm x 144mm bezel
  • 6 relay contact or solid state relay outputs/3 digital control input.
  • Parallel printer output.
  • Serial output options: RS232 or RS485.
  • 10BaseT Ethernet connection.
  • Companion Software for unit configuration, communication, data analysis, print and export to standard spreadsheet/database applications.

Efficiency, Flexibility and Data Integrity

Time is Money! Corporate down-sizing and cost cutting leaves you with less time to accomplish your goals. Data-Chart recorders are virtually maintenance free. No paper or pens to replace, no mechanical parts to wear out and because they are digital instruments, they requires less time to calibrate. This allows you to use your time more efficiently.

We’re Flexible. DataChart recorders are unparalleled in providing the highest level of flexibility of any paperless recorder made in the world. Universal inputs, networking capability, powerful math packages and a multitude of display choices allow you to display, record and communicate your data the way you want.

Because your data is so important Data Chart recorders were designed to be ultra-reliable. We chose the finest components available and combined them with a robust modular mechanical structure. Our optimized design means fewer components are needed. Fewer components means fewer failures.Up to 2 Megabytes of non-volatile memory keeps your data safe. You will never lose recorded data, even during a power outage. Data is downloaded automatically to your choice of removable media: 3.5” 1.44 Meg disk or CompactFlash™ card (up to 2 Gig in size).

DataChart DC-2000, Data-Chart 2000, DataChart, DC-2000, Paperless Recorder, SeriesViewability, Setup and Display Modes

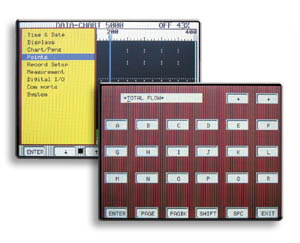

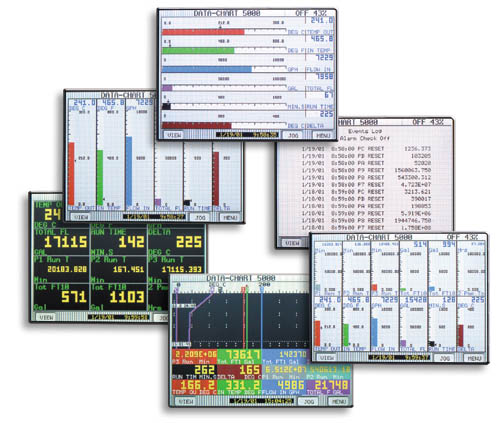

You can choose from more than 20 different display modes including trends, bargraphs and digital indicators. Select pen colors, background colors and much more. Our intuitive touchscreen control makes configuring the DC2000 a breeze. We make full use of our screen with a large, easy to follow menu system. The DC2000 has a brilliant 5.6” TFT active matrix color LCD display which is the largest of any 144mm square recorder. We’ve even added a special anti-glare coating to optimize viewability under any conditions.

DataChart DC-2000, Data-Chart 2000, DataChart, DC-2000, Paperless Recorder, Series
