Part #382095 & 382096


1000A 3-Phase Power & Harmonics Analyzer

Power measurements and analysis of single and 3-phase/3-wire or 3-phase/4-wire systems

  • Large backlit LCD displays up to 35 parameters in one screen

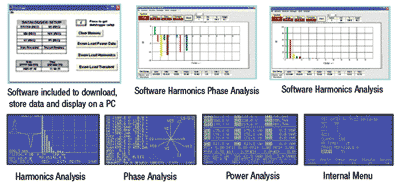

  • True RMS power measurements with Harmonics display (1-99th order)
  • Capture 28 Transient events (including Dip, Swell and Outage) with programmable threshold
  • Simultaneous Harmonics and Waveform display
  • Measures Current and Voltage
  • Datalogger records up to 52,428 records in single phase, 2 wire applications
    (17,476 in 3-phase 4-wire applications)
Part # 382097
Optional 100A Current
Clamp Probes with 1.2"
(30mm) jaw size



Part# 382098
Optional 3000A Flexible Current
Clamp Probes for wrapping
around busbars
