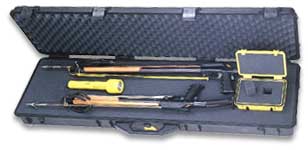

Large Protective Case Model 1750


 Large Protective Case Model 1750

1750 CASE
Unbreakable, watertight, dustproof, chemical resistant and corrosion proof. These are some of the features of this Pelican Protector Case™ that offers total protection for your equipment. It is made of Ultra High Impact structural copolymer that makes it strong and durable. Its exclusive 1/4" (6.4 mm) neoprene o-ring and ABS latches seal perfectly and includes an automatic purge valve for quick equalization after changes in atmospheric pressure. It has transport wheels for better handling. Your equipment can fit into the high density foam of the case for total subjection and protection against impact, vibration or shock. A nameplate (included) can be personalized (engraved at additional cost).

This case is NATO-codified and IP-67 (Ingress Protection). You break it, we replace it... forever.

Download Document
TEMPERATURE RATING
MINIMUM
-10° F (-23° C)
MAXIMUM
+210° F (+99° C)
DIMENSIONS
INSIDE
50-1/2" x 13-7/16" x 5-1/4"
(128.3 cm x 34.1 cm x 13.3 cm)
OUTSIDE
53" x 17-7/16" x 6-1/16"
(134.6 cm x 44.3 cm x 15.4 cm)
LID DEPTH
1-3/4" (4.4 cm)
CASE DEPTH
3.5" (8.9 cm)
BUOYANCY

Floats in salt water with 55 lbs (25 kg) load

COLORS


Black
Od green

ACCESSORIES


#1751 - Replacement Foam Set (3 Pieces)
#1753 - Replacement O-Ring

APPROVALS

IP 67
